Icon Plan Report for Live Sites

For an overview of all available Live Site Reports, go to: Overview of All Reports for SiteOwl Live

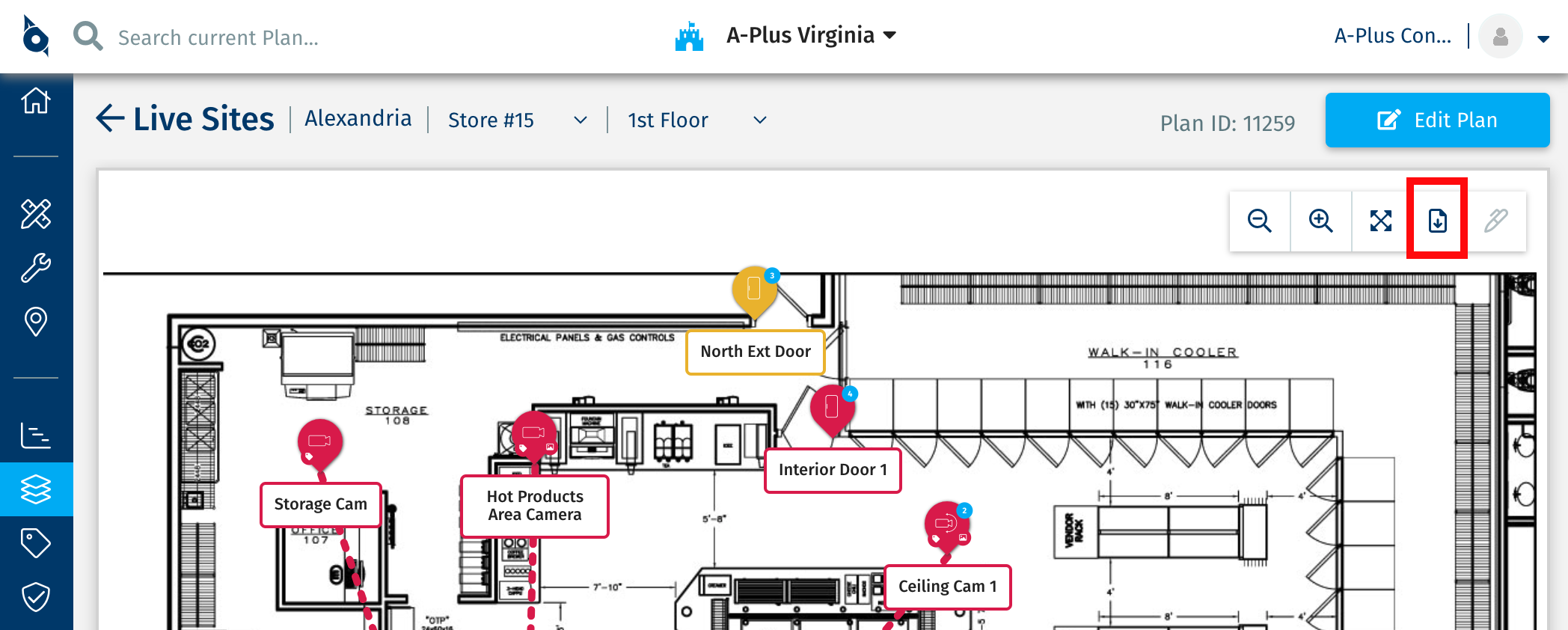

Access the Icon Plan Report from the Download options in the Live Site Plan view, then select the Icon Plan Report Configure option:

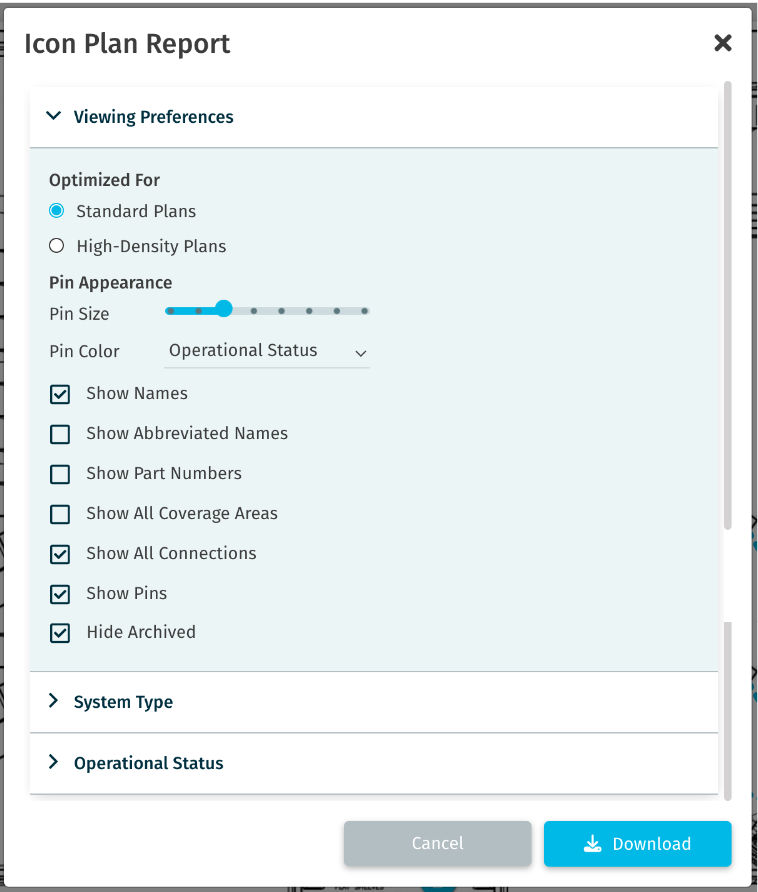

General Configuration options allow you to customize the report based on your needs:

If your Live Site Plan contains Devices that are tightly clustered, select the High-Density Plans option for optimal print quality.
Pin Size can be adjusted for optimal legibility.
Pin Color can be set to Device Color or Operational Status, enabling you to use this report for different purposes.
Include or exclude Device Names, Abbreviated Names, Part Numbers, Coverage Areas, and Connections.
Include Pins.
Include or exclude Archived Devices.
Limit the report to selected System Types and Operational Statuses. All are included by default.

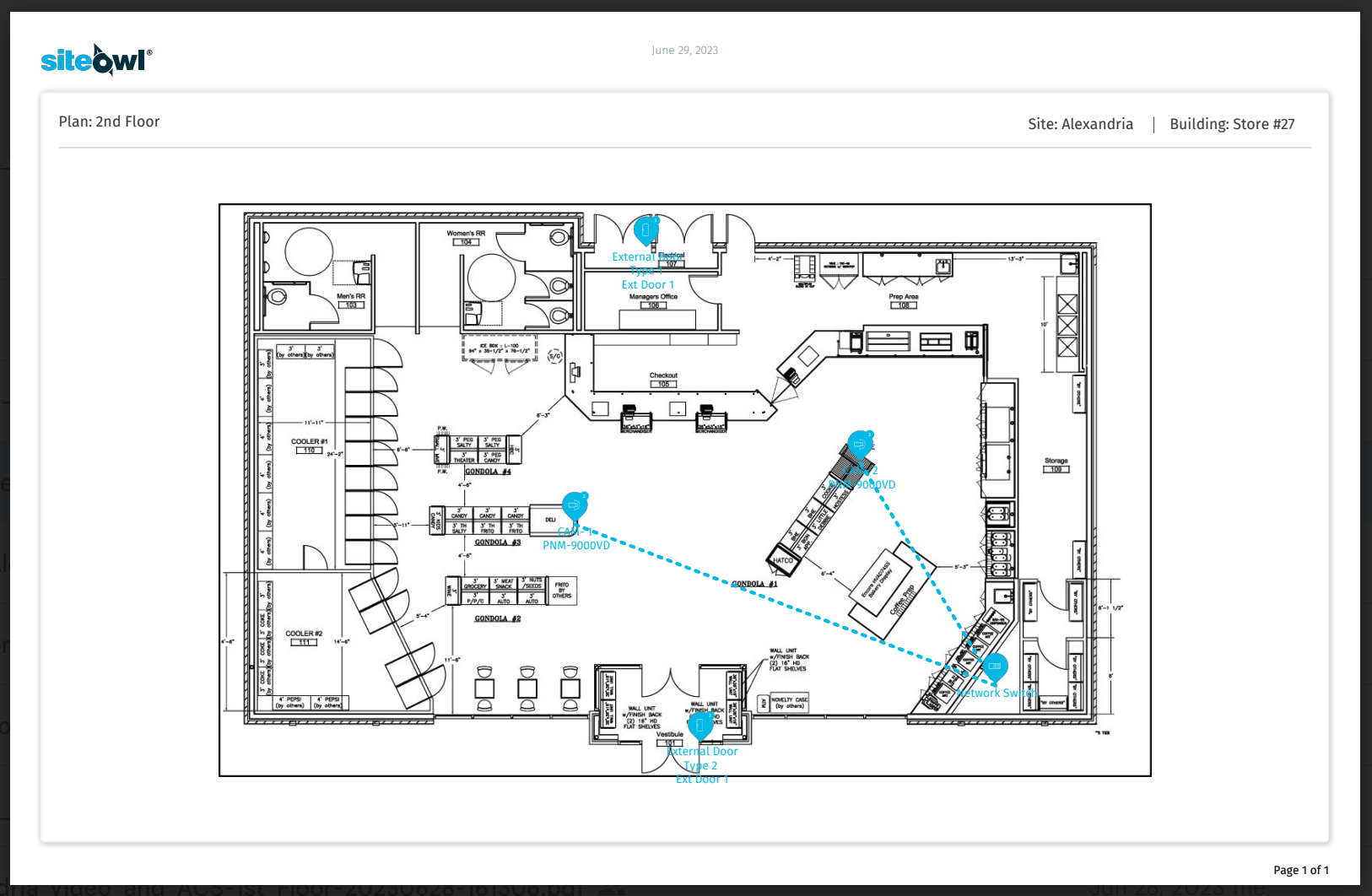

Click the image to view a full report sample:
