Multi-Plan Report for Live Sites

Su Subburaj
Su Subburaj
  • Updated

For an overview of all available Live Site Reports, go to: Overview of All Reports for SiteOwl Live

Access the Multi-Plan Report from the Reports from two locations in SiteOwl:

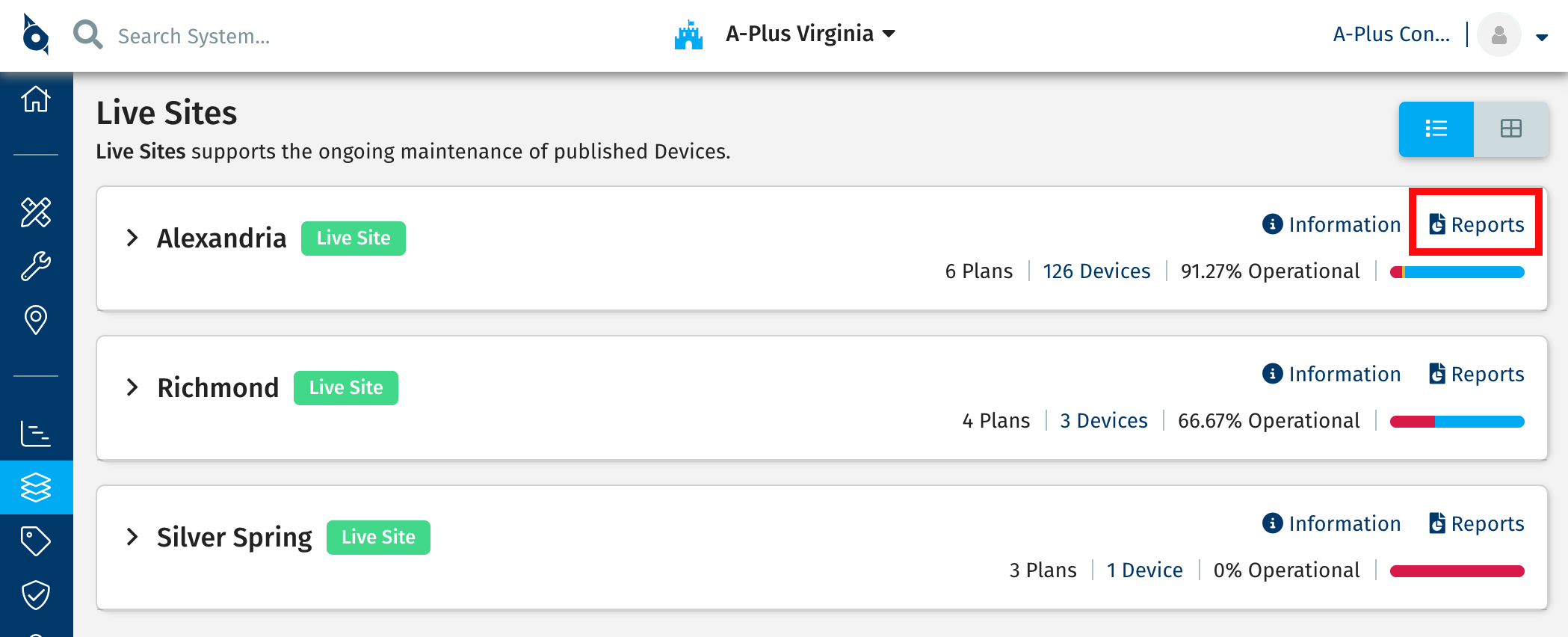

  1. The Reports link in the Live Site Card:

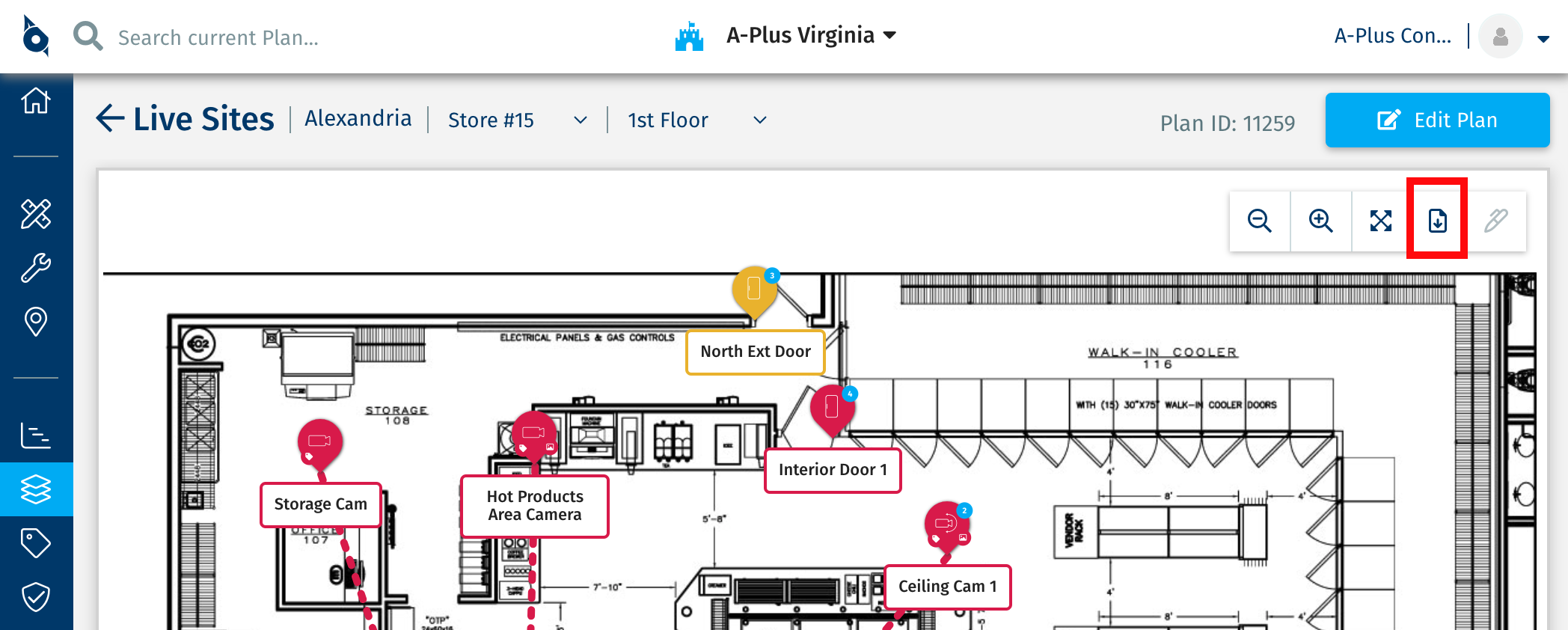

  2. The Download icon in the Live Site Plan view:

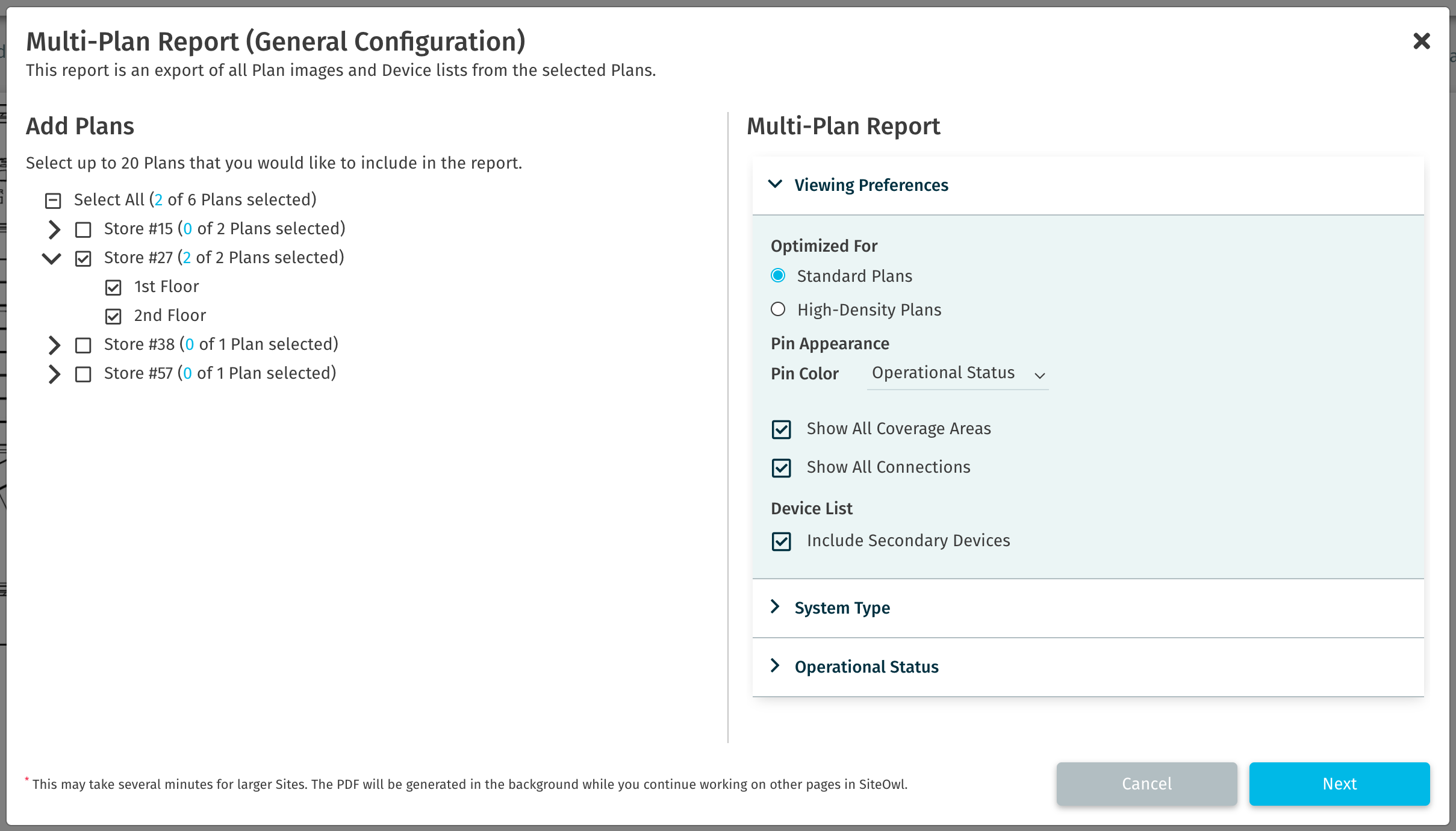

General Configuration options allow you to customize the report based on your needs:
  1. Select up to 20 Live Site Plans to include in the report.
  2. If your Plans contain Devices that are tightly clustered, select the High-Density Plans option for optimal print quality.
  3. Pin Color can be set to Device Color or Operational Status, enabling you to use this report for different purposes.
  4. Include or exclude Coverage Areas, Connections and Secondary Devices.

  5. Limit the report to selected System Types and Operational Statuses. All are included by default.



The Pin size shown on the report is determined by your Project Plan view settings. To change this setting, navigate to the Project Plan, Filter options, then return to the Project's Reports tab to download the report.

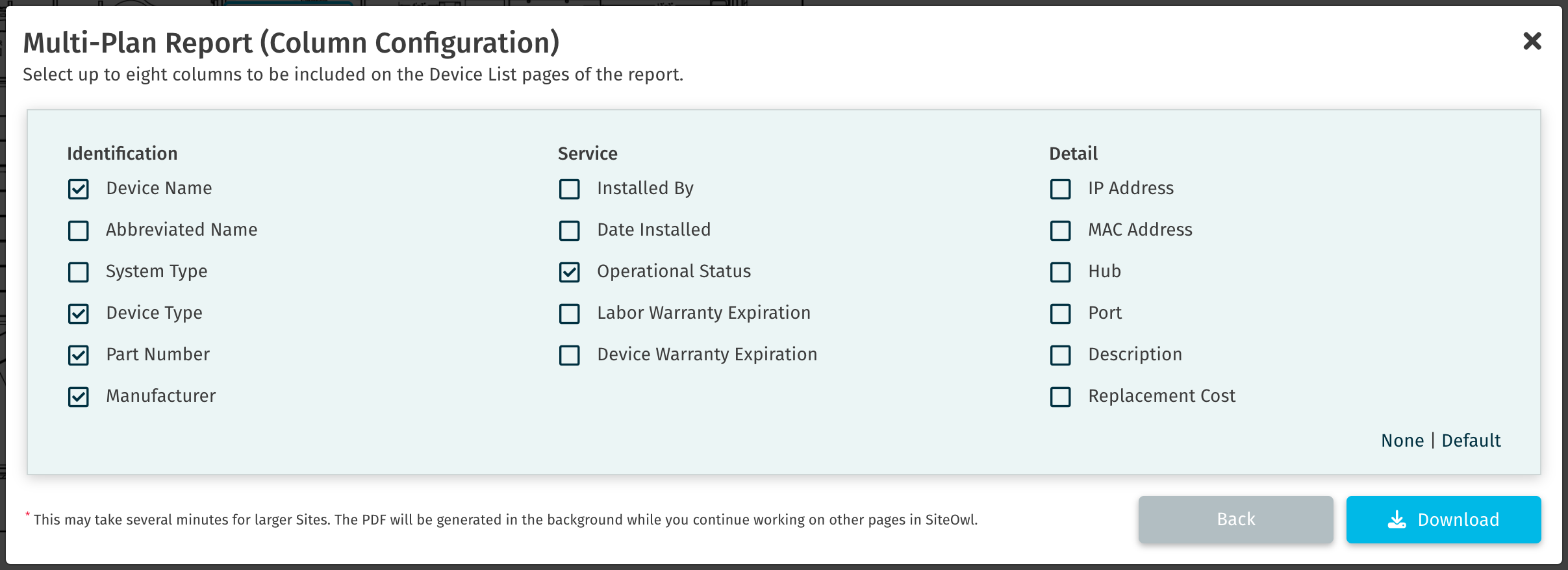

Column Configuration options allows for up to 8 columns of data to be included in the report. Your column selections will be remembered for the Account on which you're reporting. Click the Default option to return to the system default settings.

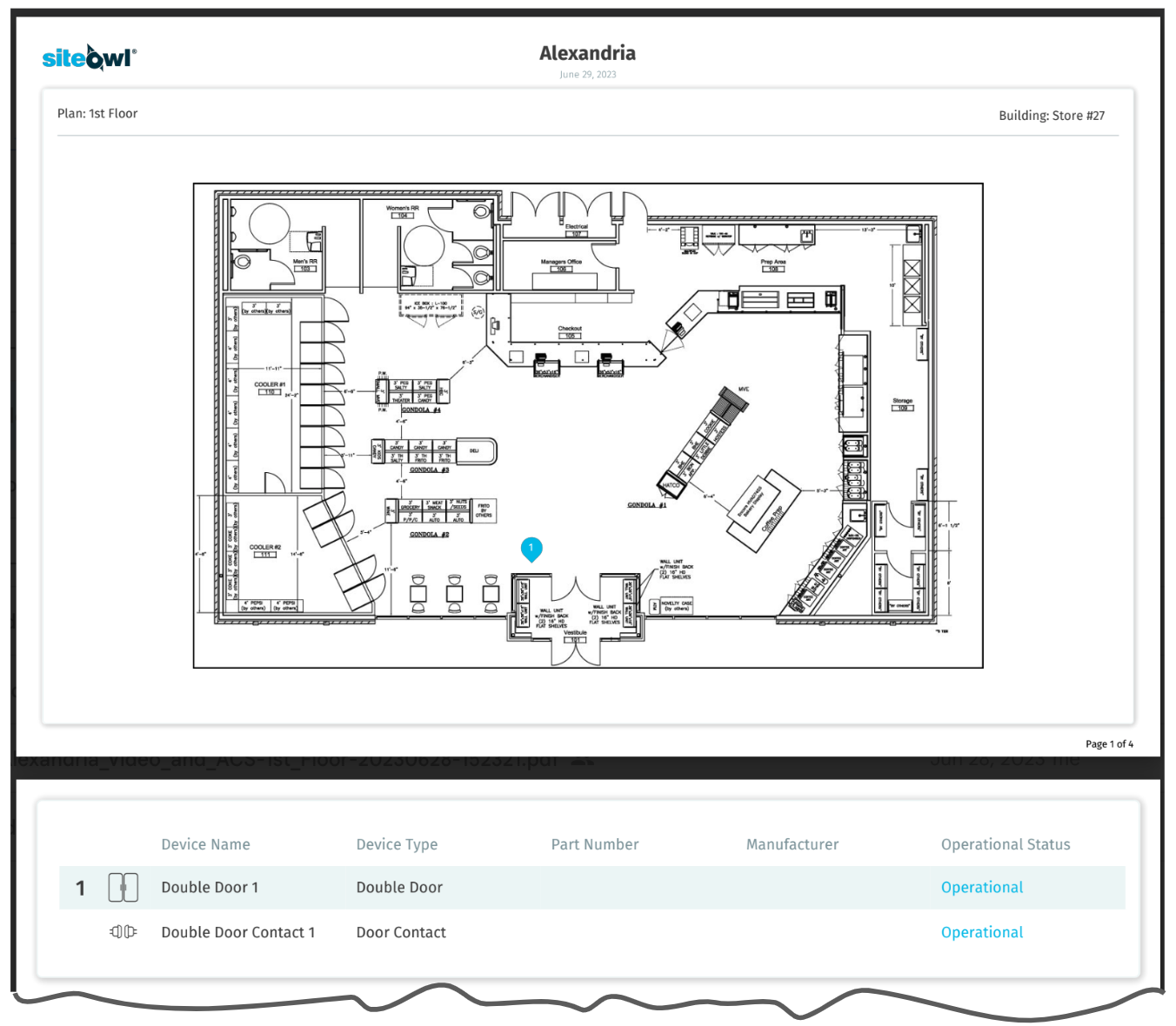

Click the image to view a full report sample:
